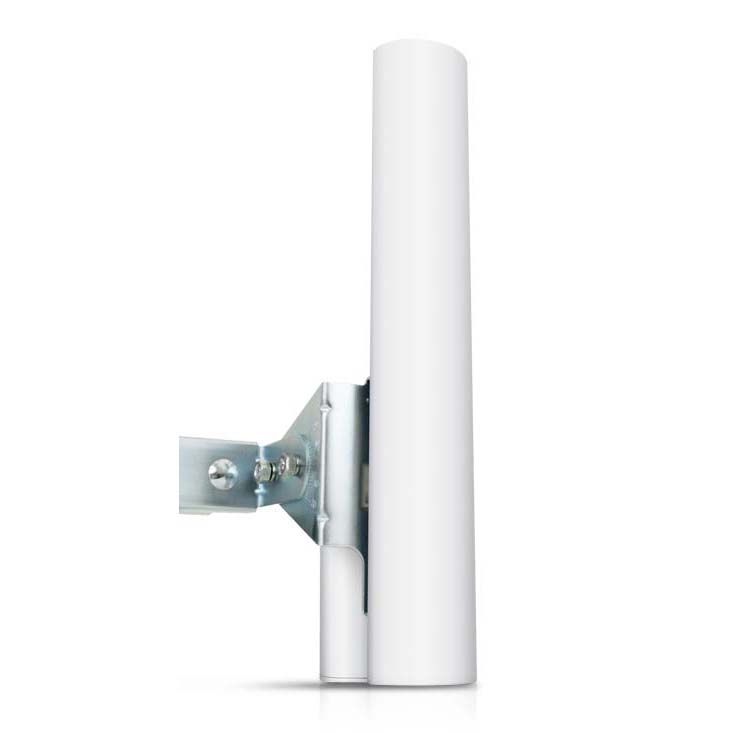

UBIQUITI 2GHZ AIRMAX 2X2 SECTOR (AM-2G15-120) – High-Performance Dual Sector Antenna
Discover the power of the UBNT-AIRMAX-SEC-2G-120-15, an AirMax dual sector antenna designed for seamless integration with AirMax devices utilizing the 802.11n standard. Engineered with patented solutions, this antenna boasts impressive features including high energy gain, optimized radiation beam shape, and superior polarization separation.
Key Features:
- Designed for AirMax devices using 802.11n standard
- High energy gain and favorable radiation beam shape
- Dedicated mounts for easy installation with “Rocket M” devices
- Waterproof antenna connectors for durability
- Forms a high-end 2×2 MIMO “Point to Multipoint” base station with Rocket M
Technical Specifications:
- Operating Frequency: 2.3-2.7GHz
- Gain: 15.0-16.0 dBi
- Polarity: Dual Linear
- Cross-pol Isolation: 28dB min.
- Max VSWR: 1.5:1
- Horizontal Beam Angle: 123 degrees
- Vertical Beam Angle: 118 degrees
- Beam Width (Perpendicular Plane): 9 degrees
- Electrical Downtilt: 4 degrees
- ETSI Compliant: EN 302 326 DN2
- Dimensions: 700x145x79mm
- Weight: 3.9 kg
- Max Wind Speed: 210 km/h

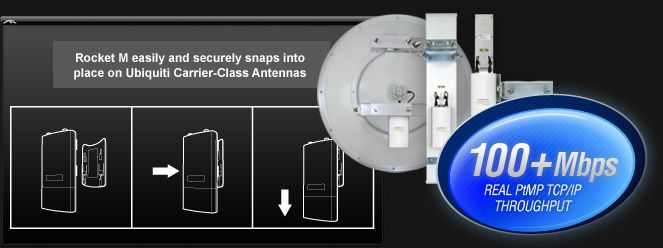

Easy Integration:
The AirMax sector antennas are designed for effortless installation with Rocket M devices, ensuring a seamless setup for optimal performance.
Explore the possibilities with the UBIQUITI 2GHZ AIRMAX 2X2 SECTOR (AM-2G15-120) and elevate your wireless network to new heights. Order now for unmatched performance and reliability!
