Introduction

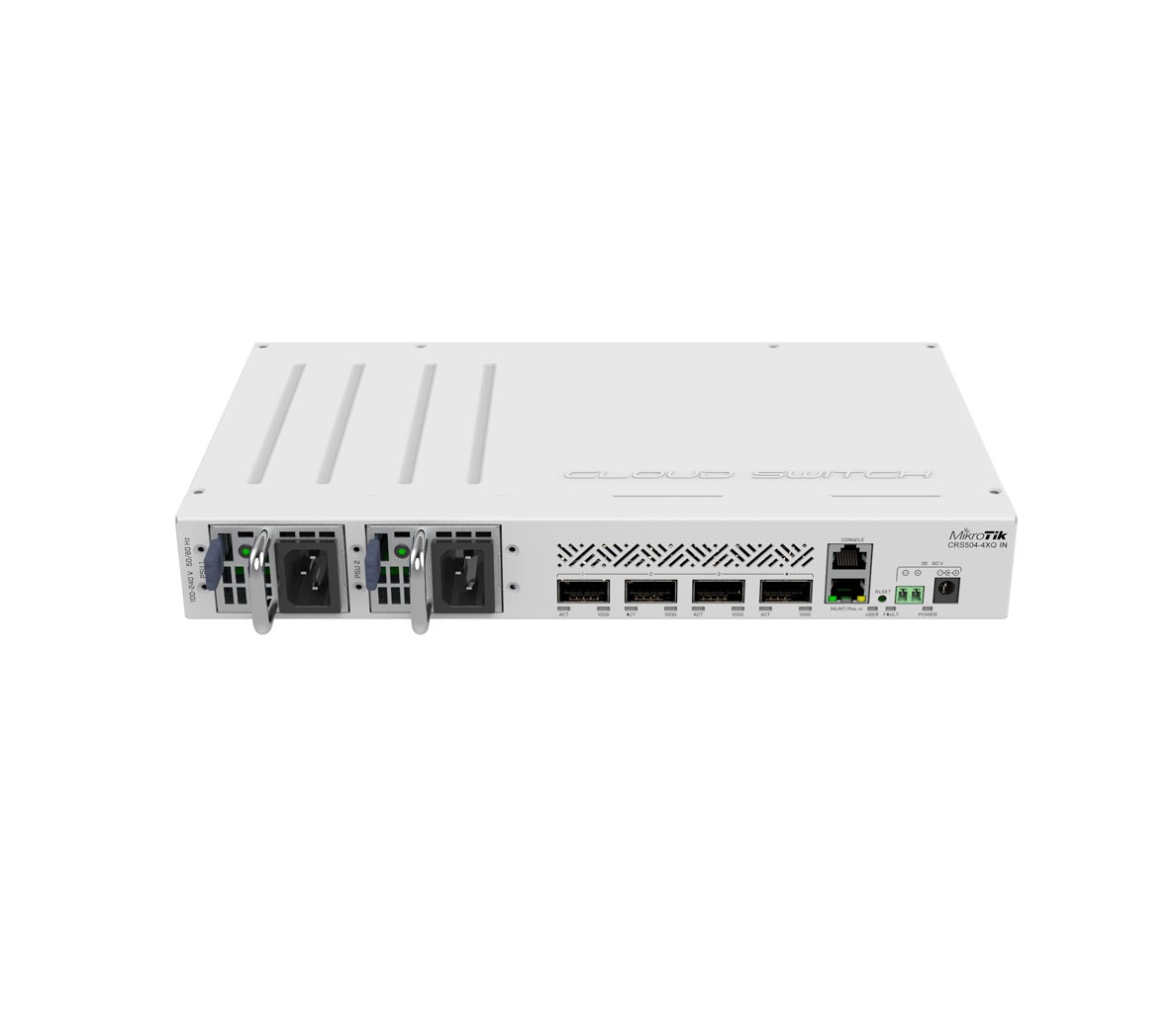

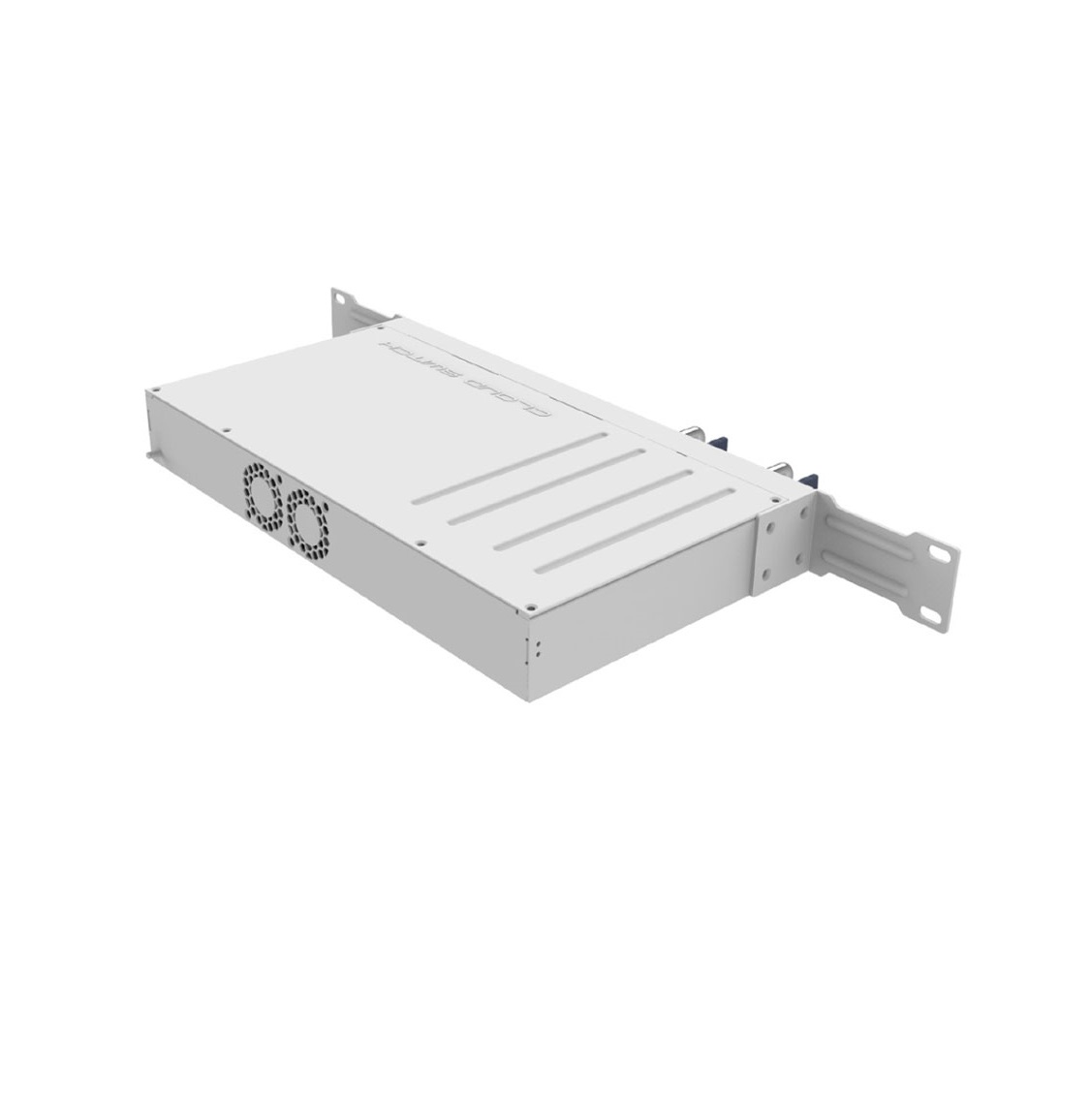

Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. The MIKROTIK CRS504-4XQ-IN is the next step in upgrading existing 10 or 25 Gigabit networks.

Key Features

• Compact size and low power consumption (25W without attachments)
• Four 100 Gigabit QSFP28 ports for high-speed connections
• Versatile port options for various network setups
• Connect multiple 25 Gigabit devices with breakout cables
• Management through an Ethernet port

Technical Specifications

• • CPU: QCA9531 650 MHz
  • Memory: RAM 256 MB, Flash 16 MB
  • Number of 100G QSFP28 ports: 4

Powering

• Number of DC inputs: 3 (PoE-in, DC jack, 2-pin terminal)
• Max power consumption without attachments: 25W
• Operating temperature: -40°C to +70°C
