UBIQUITI 5GHz RocketDish (RD-5G30) – High-Performance 30dBi Gain Dish Antenna

The RocketDish 5G-30 is a top-tier 5GHz AirMax 2×2 PtP Bridge Dish Antenna, designed for outstanding performance and reliability at an affordable price. With a 30dBi gain, this dual parabolic antenna OMT is specifically crafted for MIMO 2×2 radio bridges utilizing Rocket M devices.

Seamless Integration with AirMax Devices

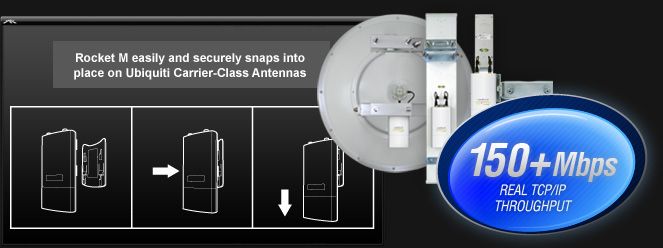

Designed to seamlessly integrate with AirMax Rocket M active devices, including Rocket M bridges, AirMax base stations, and Rocket antennas. The mounting elements of Rocket M bridges perfectly correspond to dedicated mounts used for Rocket antennas, ensuring a hassle-free installation process.

Compatibility with AirFiber 4X and 5X Devices

Without the need for modifications or additional parts, the antenna is also compatible with AirFiber4X and AirFiber5X. With a gain of 26dBi at 4.9 GHz, it meets the requirements for AirFiber4X operations.

Key Features:

• Energy Gain: 4.9 GHz – 26 dBi, 5 – 5.9 GHz – 30 dBi
• Polarity: Linear – Horizontal and Vertical
• Cross-pol Isolation: 35dB min
• Max VSWR: 1.4:1
• Angle in the Main Plane of H-rays (3dB): 5 degrees
• Angle in the Main Plane of V-ray (6dB): 5 degrees
• Front to Back Ratio: -34 dB
• ETSI Compliant: EN 302 326 DN2
• Dimensions: Diameter 648mm
• Weight: 9.8 kg
• Maximum Permissible Wind Speed: 210 km/h

Enhance your network with the UBIQUITI 5GHz RocketDish (RD-5G30) – a reliable, high-gain dish antenna tailored for MIMO 2×2 radio bridges. Invest in top-notch performance and compatibility for your wireless communication needs.
