High-Performance 5GHz AirMax Antenna

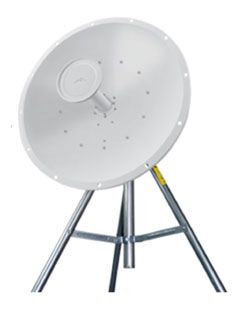

The RocketDish 5G-34 is a 5GHz AirMax 2×2 PtP Bridge Dish Antenna, featuring dual parabolic antenna OMT for MIMO radio bridges. With an impressive 34dBi gain, it’s designed specifically for MIMO 2×2 radio bridges using Rocket M devices.

Integrated with AirMax System

Designed to seamlessly integrate with AirMax Rocket M active devices, including Rocket M bridges, AirMax base stations, and Rocket antennas. The installation is hassle-free, as the mounting elements correspond to dedicated mounts used for Rocket antennas.

Key Features

• Operating Frequency Range: 4900MHz – 5900MHz
• Energy Gain: 32.1-34.2 dBi
• Polarity: Linear – Horizontal and Vertical
• Cross-pol Isolation: 35dB min
• Max VSWR: 1.4:1
• ETSI Compliant: EN 302 326 DN2
• Dimensions: Diameter 972mm
• Weight: 13.5 kg
• Max Permissible Wind Speed: 200 km/h
