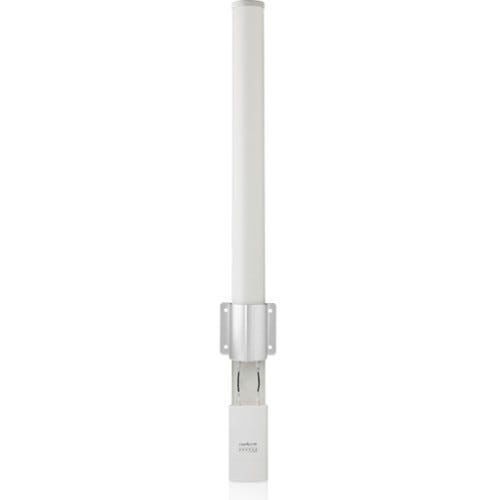

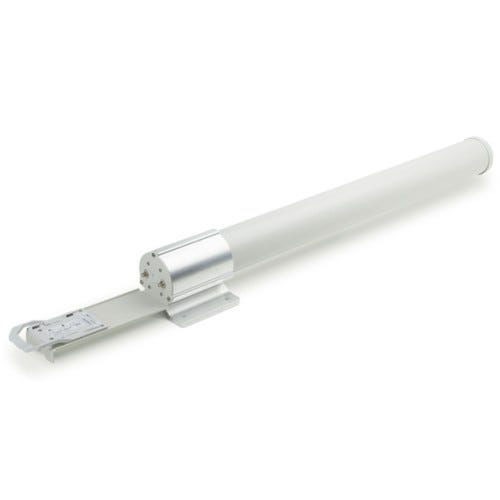

Ubiquiti AMO-2G10 AirMax Omni 2 GHz Dual Antenna – 10 dBi Gain

The Ubiquiti Networks AMO-2G10 AirMax Omni is a powerful dual-polarization omnidirectional antenna with 10 dBi gain, specially designed for the 2.4 GHz band.

Key Features:

• Omnidirectional antenna for 360-degree coverage
• 10 dBi gain for enhanced network performance
• Designed for use with 802.11N 2xMIMO technology
• Wide frequency range: 2.35 – 2.55 GHz
• Dual polarity for improved signal reception

Technical Specifications:

• Antenna Type: Omnidirectional
• Frequency Range: 2.35 – 2.55 GHz
• Energy Gain: 10 dBi
• Polarity: Dual
• Separation between Connectors: 25 dB min
• Radiation Angle (Vertical): 360 degrees
• Radiation Angle (Horizontal): 360 degrees
• VSWR: 1.7:1
• Connector: SMA
• Set Composition: Antenna + Pigtails for Rocket
• Dimensions: 217 x 123 x 1011 mm
• Weight: 2.1 kg
• Packaging: Paperboard

This AMO-2G10 AirMax Omni antenna is perfect for creating an efficient and cost-effective 802.11N 2xMIMO base station, offering a bandwidth of up to 300 Mbps. Its omnidirectional radiation characteristics make it an ideal solution for distributed client environments, providing extensive coverage while maintaining high network performance.

Enhance your wireless network with the Ubiquiti AMO-2G10 AirMax Omni 2 GHz antenna, designed for reliability and superior performance.
