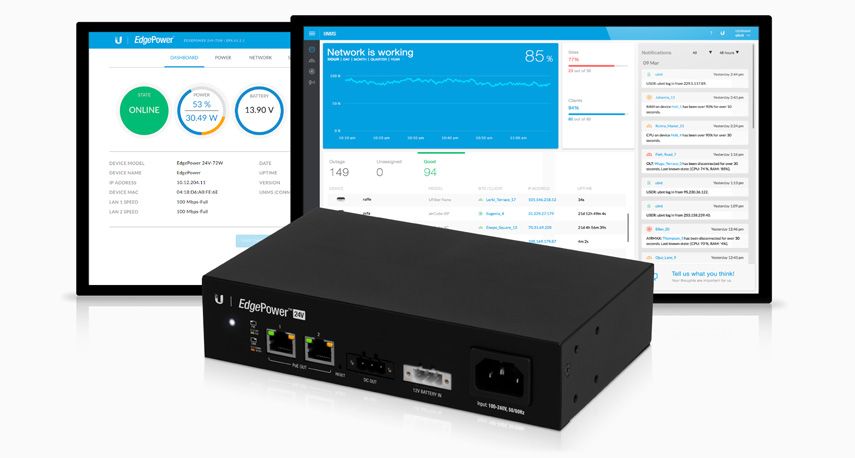

EdgePower 24V 72W (EP-24V-72W)

The EdgePower EP-24V-72W modular DC power supply with UPS and PoE protects the WISP site from power loss. Receive notifications in the event of a power outage. It offers a 12V lead-acid battery input for backup (battery not included).

Key Features:

• 24VDC output
• Dual 24V passive PoE output ports
• Convenient UPS functionality
• Compatibility with EdgeRouter ER-12 and EdgeSwitch ES-10XP

EdgePower is also connected to EdgeSwitch via an Ethernet cable for management.

Specifications:

• Dimensions: 192 x 43.7 x 115 mm
• Weight: 650 g
• Network Interface: 10/100 Mbps RJ45 Ports
• Management Interface: Ethernet In-Band
• PoE Output: 24VDC Passive PoE (Pins 4, 5+; 7, 😎
• DC Output: 25V, 3A
• AC Power Supply: 100-240VAC, 50-60 Hz, universal plug
