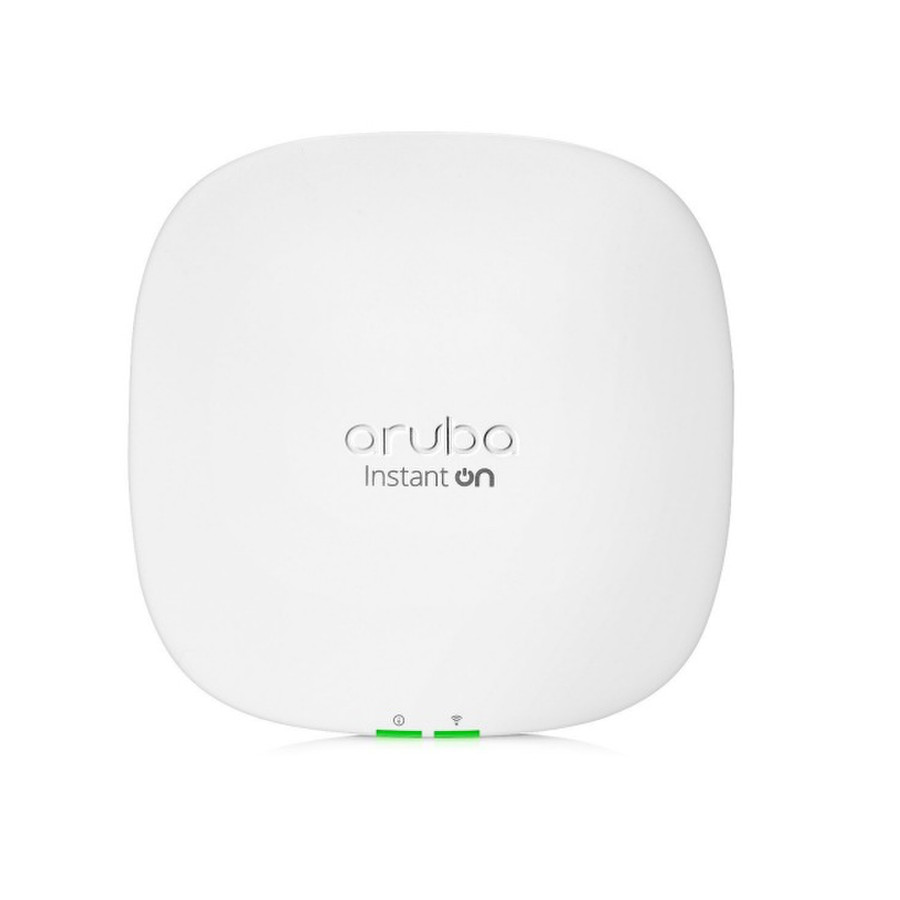

Aruba Instant On AP25 (US) 4×4 Wi-Fi 6 Indoor Access Point

The Aruba Instant On AP25 Access Points support the Wi-Fi 6 standard, providing superior features such as orthogonal frequency-division multiple access (OFDMA) and Multi-User MIMO (MU-MIMO), along with Target Wait Time (TWT).

Enhanced Wi-Fi 6 Features

The Aruba Instant On AP25 supports features like Target Wake Time (TWT) to establish efficient communication schedules, improving device battery life. It’s 100% backward compatible, supporting Wi-Fi 6 and legacy clients simultaneously (11a/b/g/n/ac).

High Capacity and Efficiency

Delivering higher capacity, efficiency, and performance, the Aruba Instant On AP25 is ideal for small and growing businesses with device-dense environments. Its 4 spatial streams ensure superior Wi-Fi coverage.

Advanced Network Performance

Benefit from the performance advantages of OFDMA, ensuring increased network performance and capacity. The 160 MHz channel bandwidth is perfect for high-definition video streaming and virtual reality devices.

Security and Management

Integrated with WPA2/WPA3 security standards and Enhanced Open support, Aruba Instant On AP25 provides protected wireless access. Two-Factor Authentication (2FA) adds an extra layer of security, and up to eight different SSIDs keep your data safe. The AP also features an integrated router, gateway, and firewall functionality.

Key Specifications (R9B27A)

Certifications: EN 60601-1-1, EN 60601-1-2, Wi-Fi Alliance certified (WFA) 802.11ax (Wi-Fi 6), WPA2, WPA3
Input voltage: Power over Ethernet (POE) 802.3at, Max power consumption: 20.1W (PoE), 15.9W (DC)
Wi-Fi antenna: Down-tilt omni-directional antennas for 2×2 MIMO (2.4GHz) and 4×4 MIMO (5GHz)
Connectivity: Ultra-fast 802.11ax, 4×4:4
Ports: Uplink 2.5 Gigabit Ethernet port, Bluetooth Low Energy (BLE) radio, Kensington security slot
Mounting: White mount clip for walls and ceilings
Power consumption: Max 20.1W (PoE), 15.9W (DC)
Radio coverage: Dual radio, 5 GHz 802.11ax 4×4 MIMO, 2.4 GHz 802.11ax 2×2 MIMO
Warranty: Aruba Instant On 2-year warranty, 24X7 phone support for 90 days, and chat support for the entire warranty period.

Aruba Instant On Mobile App

Manage your network easily with the Aruba Instant On mobile app or cloud-based web portal, offering convenient onsite or remote management.

Experience the power and efficiency of the Aruba Instant On AP25 Wi-Fi 6 Access Point, providing superior performance for your business needs.
