Ubiquiti PrismAP 5GHz Symmetrical Sector Antenna (HORN-5-45)

Key Features

Ubiquiti introduces the PrismAP-5-45, a revolutionary airMAX ac sector antenna designed for wireless systems with breakthrough scalability. The unique beam characteristics and excellent colocation properties enable higher sector density than traditional sector technology.

Manufacturer Specification

• • Beam Width: 45°
  • Designed for: PS-5AC, IS-5AC, and IS-M5
  • Mounting: Single button for easy antenna mounting/removal
  • Beamforming: Newly designed radiator shape for better beamforming
  • Dimensions: Diam. 175 x 184mm
  • Weight: 1.34 kg

Technical Details

• • Supported Frequency Range: 5.15-5.85 GHz
  • Gain: 15.5 dBi

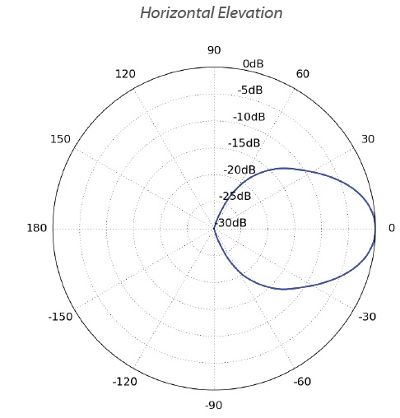

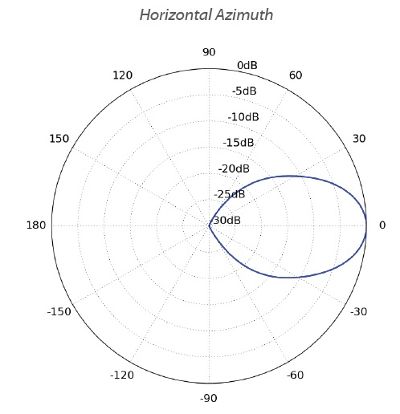

  • Horizontal Beam Width: 45°

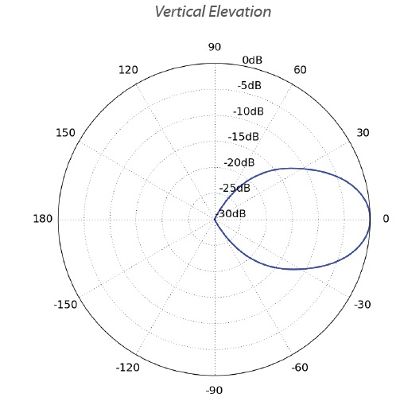

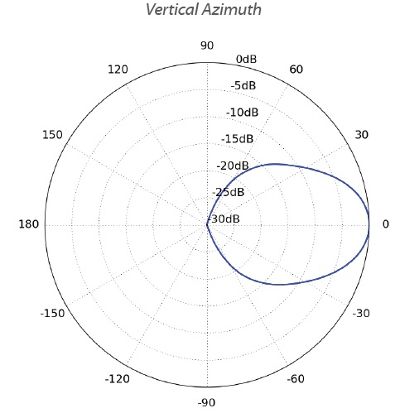

  • Vertical Beam Width: 45°
  • Beam Height: 45°

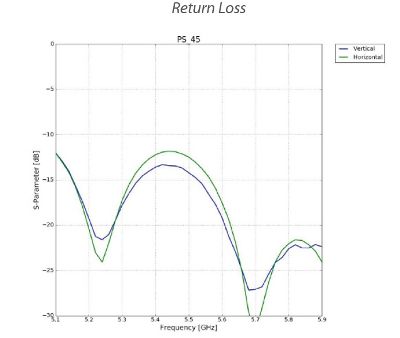

  • VSWR Max: 1.7:1
  • Wind Resistance: 200 km/h (125 mph)
  • Maximum Wind Load: 56N – 200 km/h
  • Polarity: Dual-Linear
  • Polarity Isolation: 17 dB
